Run SQL statements with the SQL action#

#Objective

The SQL action lets you write a SQL query and run it against your datasets and tables as a Data Processing Engine action. Like any other action, it can be run on demand, scheduled with a cron trigger, or orchestrated inside a workflow.

Queries run on the underlying Trino engine, so tables are addressed in the fully qualified catalog.schema.table form. The Tables panel (see below) builds those names for you, so you rarely have to type them by hand.

By default a SQL action runs on 2 DPU; you can adjust the allocation from the resource selector at the top of the configuration screen.

#Configure a SQL action

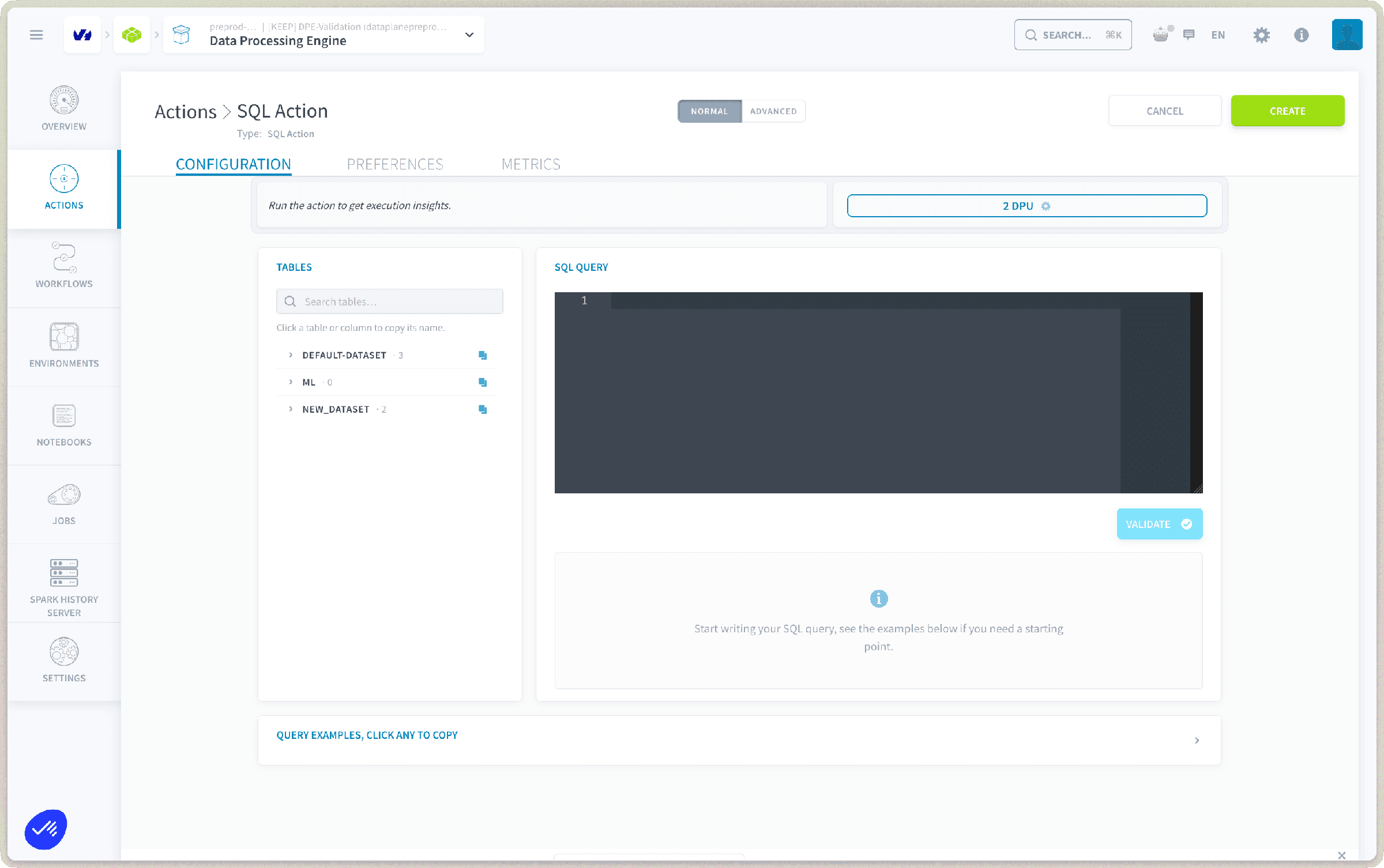

The configuration screen has two panels: the Tables browser on the left to help you find and reference assets, and the SQL query editor on the right where you write and validate your statement.

#Browse tables and copy names

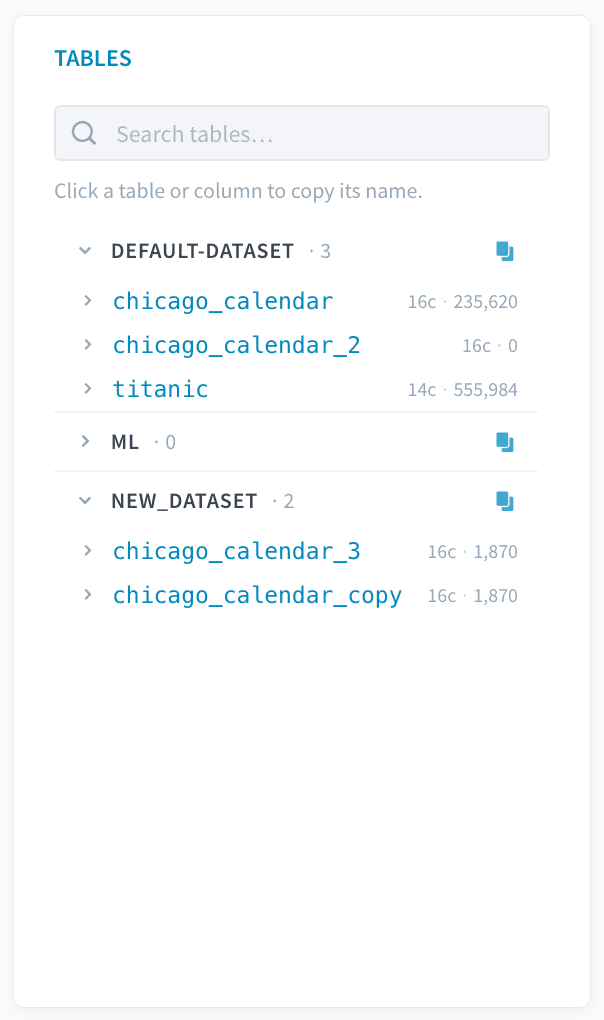

The Tables panel lists the datasets in your project, each expandable to its tables and their attributes. Use the search box to quickly locate an asset, then click it to copy its name to the clipboard, shaped so it drops straight into your query:

This saves you from remembering how each dataset maps to its Trino catalog and schema, and helps the engine resolve your query on the first try.

#Write and validate the query

Type your query in the SQL query editor. If you need a starting point, open the Query examples drawer at the bottom of the page and click any example to copy it into the editor.

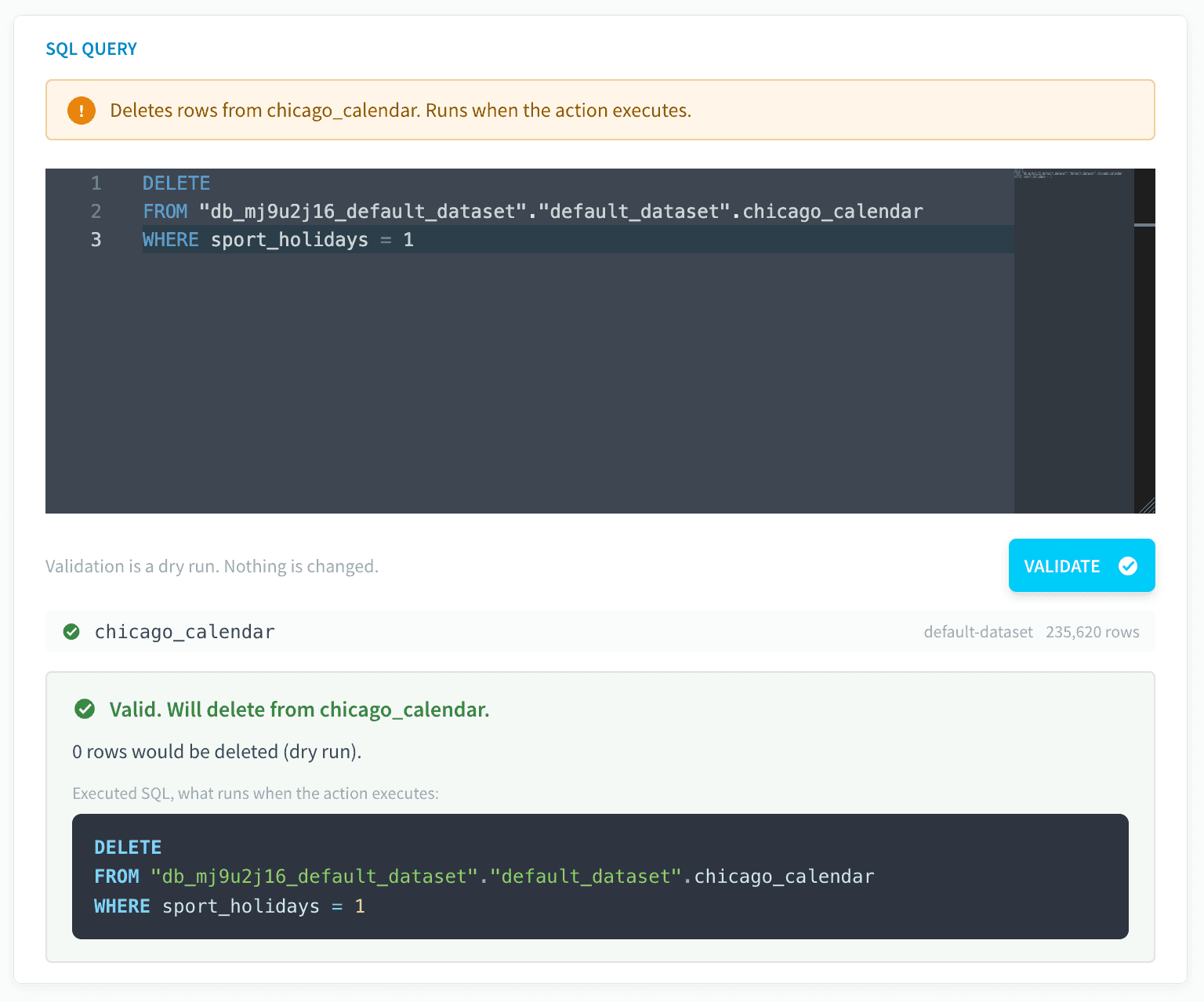

Once your query is ready, click Validate. This runs the query as a dry run and, on success, shows a validation summary at the bottom of the editor: a beautified version of EXPLAIN that tells you what the query will do, with the key details for that query type.

When you're satisfied, click Create at the top right to create the action.

#Supported query types

The SQL action supports a broad range of statements. The engine recognizes the type of each query and behaves accordingly:

• Read: return rows without changing anything.
• Metadata: inspect schema or query plans.
• DML: modify the rows in a table.
• DDL: change the structure of a table.

Select a tab below to see an example query for each type:

SELECT *
FROM catalog.schema.orders
WHERE status = 'OPEN';

SHOW COLUMNS FROM catalog.schema.orders;

UPDATE catalog.schema.orders
SET status = 'CLOSED'
WHERE id = 42;

ALTER TABLE catalog.schema.orders
ADD COLUMN note VARCHAR;

#Create a table from a query

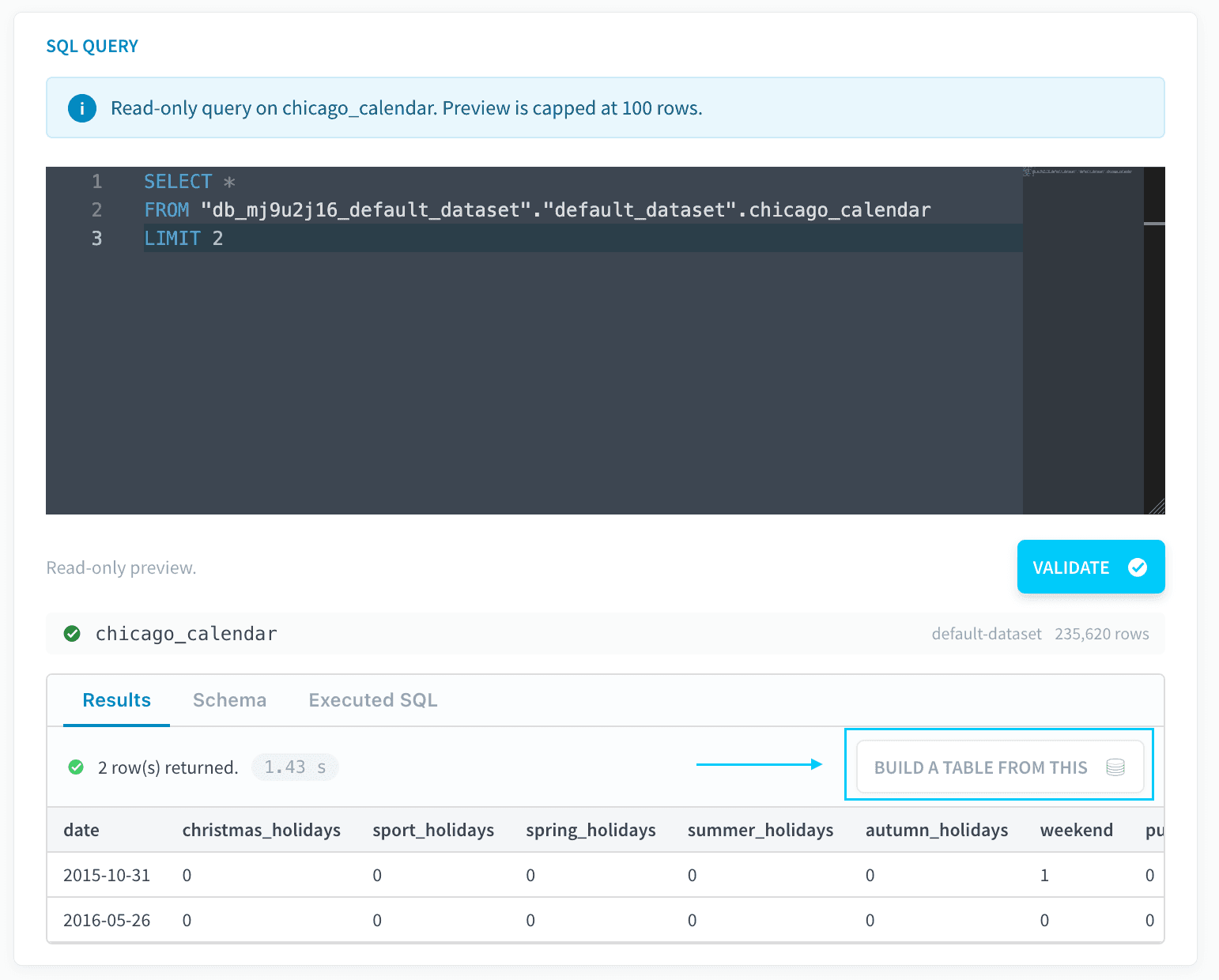

When you run a SELECT, the action offers the option to create a new table from the query result.

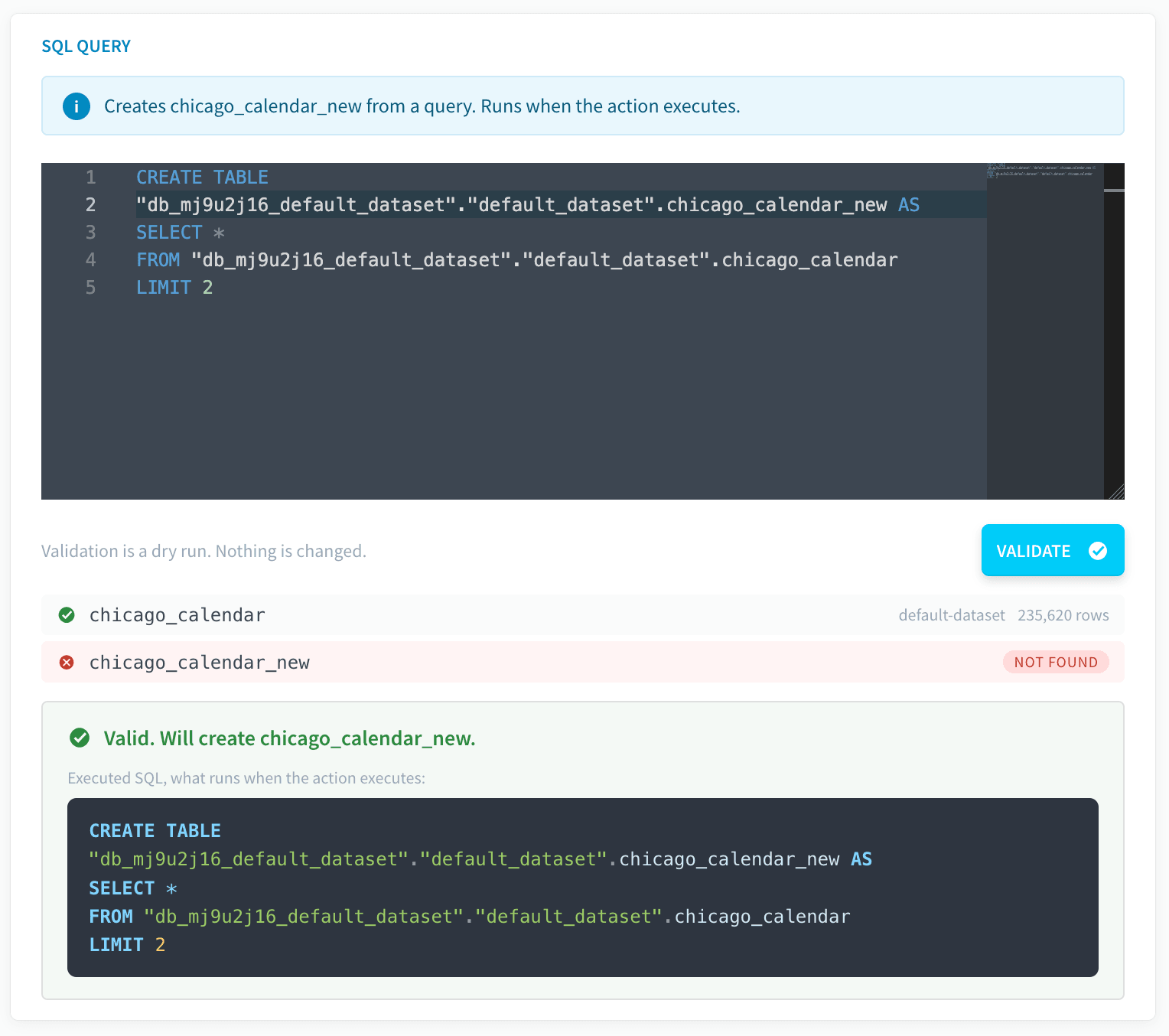

If you create and run an action with a CREATE TABLE AS SELECT (CTAS), or any other CREATE statement, the table is created on the target dataset, and the corresponding logical table is registered and built in the Lakehouse Manager as well. The new table is then available across the platform like any other Lakehouse Manager table.

#Validation at run time

Validation does not only happen while you author the query. Every time the action runs, the query is re-validated with EXPLAIN before any statement is executed.

This catches cases where the query no longer fits the table. For example, if a column referenced by the query was renamed or removed because the table's schema changed since the action was created, the run-time validation fails and the action is stopped before it executes anything, so a stale query can't run against an incompatible table and corrupt your data.

#Use the Advanced mode

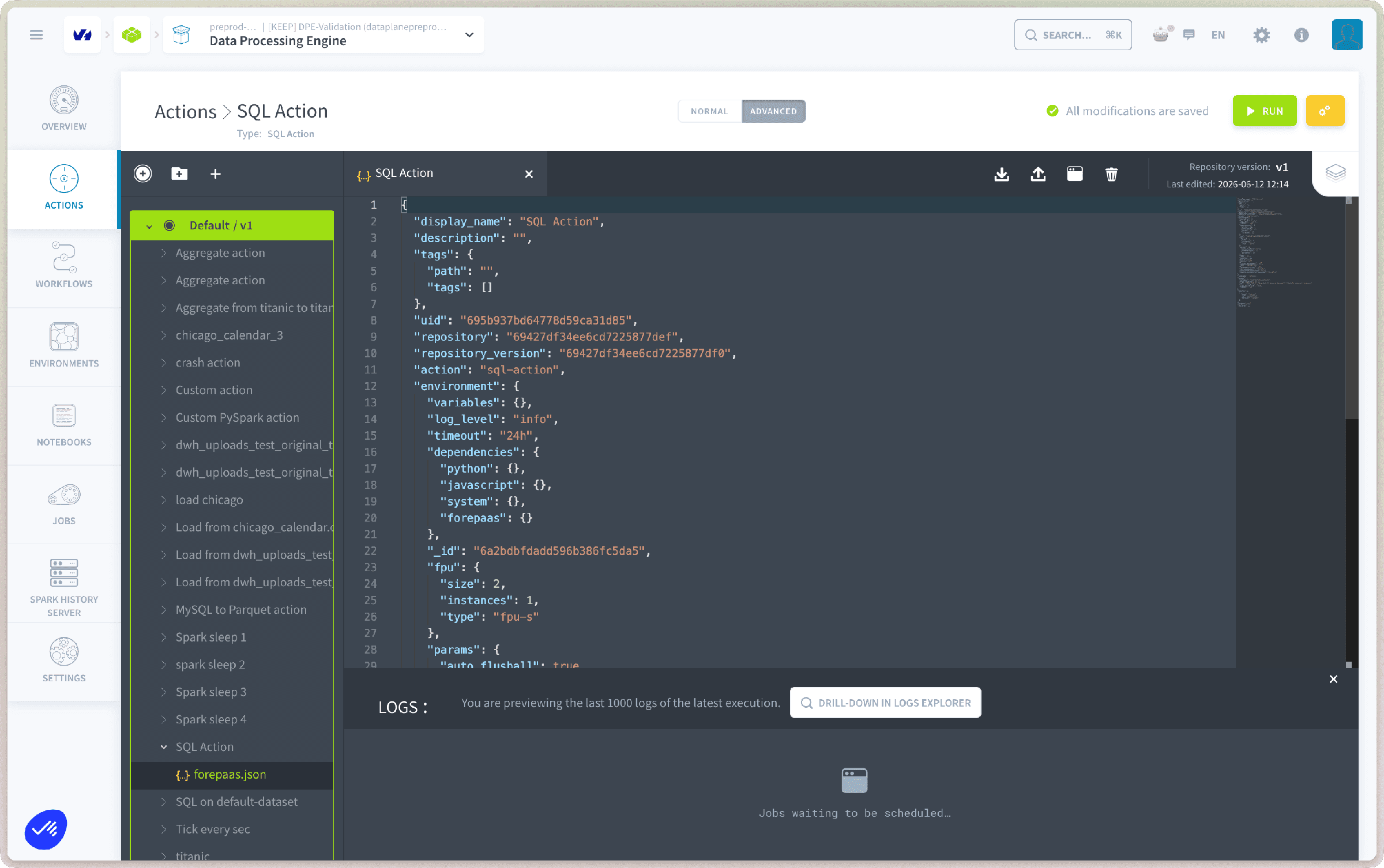

If you need to access the JSON configuration file of the action, activate the Advanced mode by clicking on Advanced at the top of the page.
